Wednesday, February 19, 2014

HP Data Protector command to backup the SQL Server DB Backup flat file to Tape media



First we have to configure the HPDP Backup Specification

1.Login HP Data Protector

2. Create the Backup Specification

3. Source – Select the Server, Folder where the SQL Server Database are backed up

   Destination – Select the Tape Media Library to which the DB Flat files from disk to be baked up

   Options  -- Provide the Description details and  the Protection like 6 Weeks

   Schedule – Skip it

   Click Apply and generate the Backup Specification.

   Use this Backup Specification name on calling the HPDP Backup using

Create the DOS Batch files below

For Full Backup – It can be used weekly when we backup FULL databases

c:
cd\Program Files\OmniBack\bin
omnib -datalist Win-SQL-FS-OnDemand -mode Full -load high

For Incremental Backup – It can be used daily when we take differential backup of databases

c:
cd\Program Files\OmniBack\bin
omnib -datalist Win-SQL-FS-OnDemand -mode incremental1 -load high

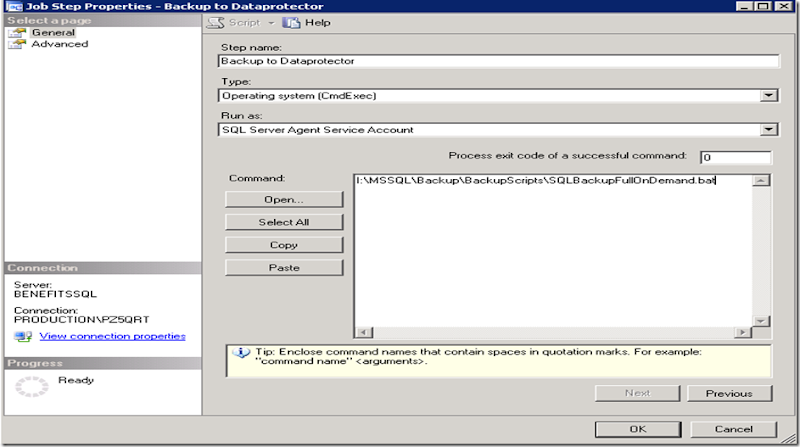

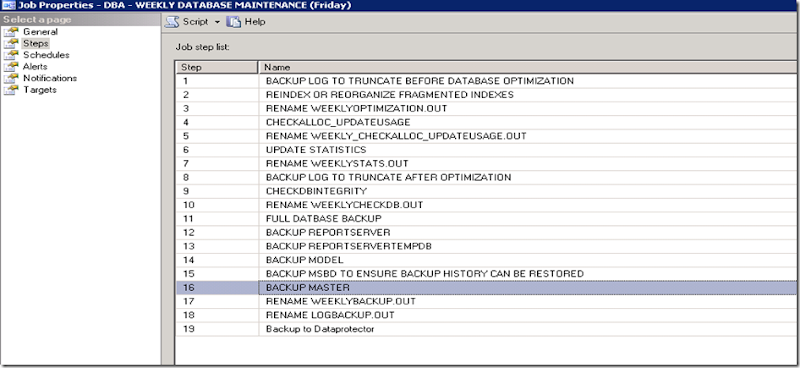

On the SQL Server Agent Jobs for the FULL / Differential Backup add another job step to trigger the DB Backup of flat files to the Tape Media by calling the DOS batch file appropriately.



Omnib usage


Usage synopsis:

    omnib -version | -help

    omnib -filesystem Host:MountPoint Label -device LogicalDevice
          [Mirror options]...[Mirror options]
          [General options] [Filesystem options] [-public]

    omnib -filesystem Host:MountPoint Label -device LogicalDevice
          -ndmp Type [NDMP options] [-public]

    omnib -winfs Host:MountPoint Label -device LogicalDevice
          [Mirror options]...[Mirror options]
          [General options] [Filesystem options] [Winfs options]
          [-public]

    omnib -winfs Host:MountPoint Label -device LogicalDevice
          -iap [General options] [Filesystem options] [Winfs options]
          [-public]

    omnib -NetWare Host:MountPoint Label -device LogicalDevice
          [[Mirror options]...[Mirror options]
          [NetWare options] [General options]
          [Filesystem options] [-public]

    omnib -host HostName:/ Label -device LogicalDevice
          [Mirror options]...[Mirror options]
          [General options] [Filesystem options] [-public] [-storedrim]

    omnib -rawdisk Host Label SectionList -device LogicalDevice
          [Mirror options]...[Mirror options]
          [General options] [-public]

    omnib -omnidb Host:MountPoint Label -device LogicalDevice
          [Mirror options]...[Mirror options]
          [General options]

    omnib -restart SessionID [-disk_only]

    omnib -datalist Name [Datalist options]

    omnib -resume SessionID [-no_monitor]

    omnib -sap_list ListName
          [-barmode SapMode]
          [List options]

    omnib -sapdb_list ListName
          [-barmode SapDBMode]
          [List options]

    omnib -oracle8_list ListName
          [-barmode Oracle8Mode]
          [List options]

    omnib -sybase_list ListName
          [-barmode SybaseMode]
          [List options]

    omnib -informix_list ListName
          [-barmode InformixMode]
          [List options]

    omnib -mssql_list ListName
          [-barmode MSSQLMode]
          [List options]

    omnib -msese_list ListName
          [-barmode MSExchangeMode]
          [List options]

    omnib -e2010_list ListName
          [-barmode MSExchange2010Mode]
    omnib -lotus_list ListName
          [-barmode LotusMode]
          [List options]

    omnib -msvssw_list ListName
          [-barmode VSSMode]
          [List options]

    omnib -mbx_list ListName
          [-barmode MSMailboxMode]
          [List options]

    omnib -vmware_list ListName
          [-barmode VMwareMode]
          [List options]

    omnib -db2_list ListName
          [-barmode Db2Mode]
          [List options]

    omnib -mssps_list ListName
          [-barmode MSSPSMode]
          [List options]

    omnib -mssharepoint_list ListName
          [-barmode MSSharePointMode]

    omnib -veagent_list ListName
          [-barmode VEPAMode]


    Filesystem options:

        -trees TreeList
        -only MatchPattern
        -exclude TreeList
        -skip MatchPattern
        -lock
        -touch
        -[no_]log | -log_dirs | -log_file
        -mode {full | incremental | incremental1 ... | incremental9}
        -enh_incr
        -clp
        -[no_]hlink
        -size FromRange ToRange

    Winfs options:

        -no_share_[info]
        -[no_]nthlinks
        -[no_]archatt
        -vss {fallback | no_fallback}
        -no_vss
        -[no_]async

    Mirror options:

        -mirror LogicalDevice [-pool MediaPool -prealloc MediaList]

    General options:

        -preview
        -pool MediaPool
        -prealloc MediaList
        -protect {none | weeks n | days n | until Date | permanent}
        -report {warning | minor | major | critical}
        -pre_exec Pathname
        -post_exec Pathname
        -compress
        -encode ["aes256"]
        -load {low | medium | high}
        -crc
        -no_monitor
        -keepcatalog {weeks n | days n | until Date}
        -var[iable] <var_name> <var_value>

    Datalist options:

        -select SelectList
        -mode {full | incremental | incremental1 ... | incremental9}
        -protect {none | weeks n | days n | until Date | permanent }
        -keepcatalog {weeks n | days n | until Date}
        -preview
        -load {low | medium | high}
        -disk_only
        -crc
        -no_monitor

    List options:

        -barcmnd Command
        -protect {none | weeks n | days n | until Date | permanent}
        -keepcatalog {weeks n | days n | until Date}
        -load {low | medium | high}
        -disk_only
        -crc
        -no_monitor
        -test_bar

    NetWare options:

        -[no_]NWuncompress

    NDMP options:

        -ndmp_user UserName
        -ndmp_passwd Password
        -ndmp_env FileName
        -ndmp_bkptype {dump | NVB | SMTape}
    Type = { Generic | NetApp | Celerra | BlueArc | Hitachi | HP-X9000 }

    SapMode      = { full | incr }

    SapDBMode    = { full | diff | trans }

    Oracle8Mode  = { -full | -incr1 | -incr2 | -incr3 | -incr4 }

    SybaseMode   = { full | trans }

    InformixMode = { full | inf_incr1 | inf_incr2 }

    MSSQLMode    = { full | diff | trans }

    MSExchangeMode  = { full | incr }

    MSExchange2010Mode = { full | diff | incr | copy }

    LotusMode    = { -full | -incremental }

    MSMailboxMode   = { -full | -incr | -incr1}

    VMwareMode   = { full | diff | incr}

    VSSMode      = { full | copy | incr | diff}

    Db2Mode      = { -full | -incr | -delta}

    MSSPSMode    = { full | diff | trans }

    MSSharePointMode = { full | diff | incr }

    VEPAMode     = { full | diff | incr }

    Date = [YY]YY/MM/DD   (1969 < [YY]YY < 2038)
